Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
https://s3-eu-west-1.amazonaws.com/mod-kirami-img/images/2846__b1x361yy__full.png
https://s3-eu-west-1.amazonaws.com/mod-kirami-img/images/2846__iiti6vt0__full.jpg

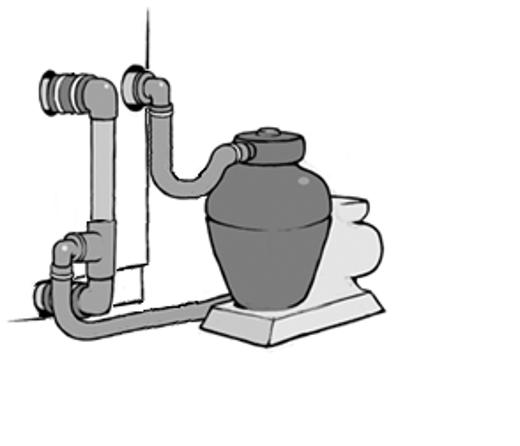

Lead-through set for plastic hot tubs without wood fired heater is used when filter unit is connected to a Kirami hot tub instead of wood fired heater. That means situations were the heater is replaced with a system meant for filtration and / or heating that circulates the water in the tub. This kit makes i possible to have the required two suction outlets inside the tub and one return inlet for the circulating water. The kit includes parts that makes the hose connection possible for 38mm inside diameter hoses for the input and output.

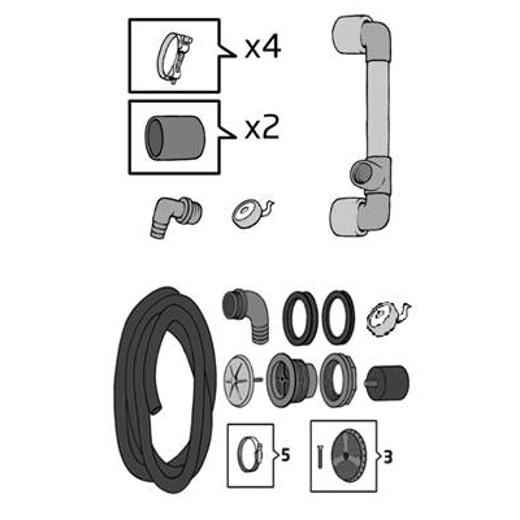

The lead-through series of hot tubs without wood fired heater includes the following parts.

Parts to replace heater lead-throughs:

  • Lead-through
  • 4 pcs Hose clamp 32-50mm
  • 2 pcs rubber hose 10cm 75mm inner dimension
  • 1 pcs 1 1/2”uk/38mm hose coupling 90 degrees
  • Pipe tape roll

Parts to connect filter unit:

  • Lead-in 2½”outer thread x 1½”inner thread (M6 for inner thread plug)
  • Gaskets, 3mm and 8mm to the wall
  • Nut 2½” inner thread
  • 3 pcs protection grid for inlets/outlets in the tub
  • 3 pcs M6 bolts for grill installation
  • 1 pcs 1 1/2”uk/38mm hose coupling 90 degrees
  • Pipe tape roll
  • 5 pcs Hose clamp 32-50mm
  • Pipe 5m (in one piece, the colour may vary)
  • A short discharge plug and lock bolt for discharge.
  • Lead-in plug M6 outer thread
FI
Product code
2846
0
Uutuus
Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
Lead-through set for plastic hot tubs without wood fired heater
Read more in our FAQ-section

Measurements

Manuals and files

Technical Info

Weight
5.1
Packing length
48
Packing width
48
Packing height
18
